CRUMB Circuit Simulator

关于这款游戏

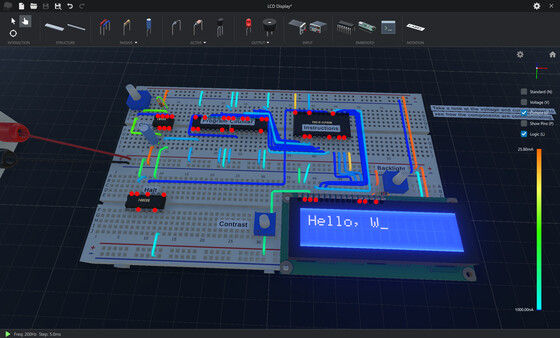

Interactive and immersive learningCRUMB offers an easy to use and interactive introduction to electronic circuitry Fully realised in3 D you can construct prototype circuits as you would at the workbench without the risk of terminal component failure or the hassle of ordering individual components A broad selection of parts and features offers an insight into many different areas of modern electronics Large catalogue of components CRUMB has a varied selection of components even at this early stage in its development There are no limits to what circuits you can create CRUMB includes several built-in examples which showcase some of the abilities of CRUMB This list below highlights some of the included components Passives such as Resistors Capacitors and Inductors Tactile slide and DIP switches Semiconductors such as Diodes BJT Transistors MOSFETs and Silicon Controlled Rectifiers LEDS Transducers Seven Segment displays LCD and TFT displays DC Power and Signal Generators Large selection of Integrated Circuits ranging from Basic to Complex Logic Timers Counters Memory EEPROM and Op Amps Fully programmable MicrocontrollerAdvanced featuresThe latest update has expanded some of the special features included with CRUMB The built-in Code Editor has been expanded to allow the viewing and editing of the Source Files that I have written for the programmable Microcontroller included in CRUMB Hex Editor This is an EEPROM available to use which can be programmed via circuitry see built-in example or values can be entered manually with the built-in hex editor Scope Analysis Up to4 components can be added to the built-in scope allowing you to view the intricacies of your circuit Visualisation CRUMB offers a set of different visualisations tools You can view current and voltages in the wires logic output at the pins of various components highlight the pin labels and anodes of polarized components and switch off the scene lighting for dark mode
